PEDESTAL SEAM WELDER

(COMPACT SIZE AND LIGHTWEGHT)

  • 1) Newly-developped Pedestal Type Seam Welding Machine.
  • 2) Especially for Thinner Sheet.
  • 3) Welding for Water tight,Air tight.
  • 4) Suitable for Mild Steel Sheet,Stainless Steel Sheet,Titanium Sheet.

Model List

STK-5STK-10STK-10HSTK-16H
Primary Power220V 50Hz(single phase)
Rated Capacity5KVA10KVA10KVA16KVA
Max.Secondary Shortcircuit Current3,000A5,000A5,000A7,000A
Max.Welding Forceby spring 70kg〜by air pressure 150kg〜
Welding Speed2.5m/min
Dia of Electrodes80mm
Net Weight44kg50kg84kg90kg
Capacity (Thickness)/stainless steelMax.0.1mmMax.0.4mmMax.0.5mm

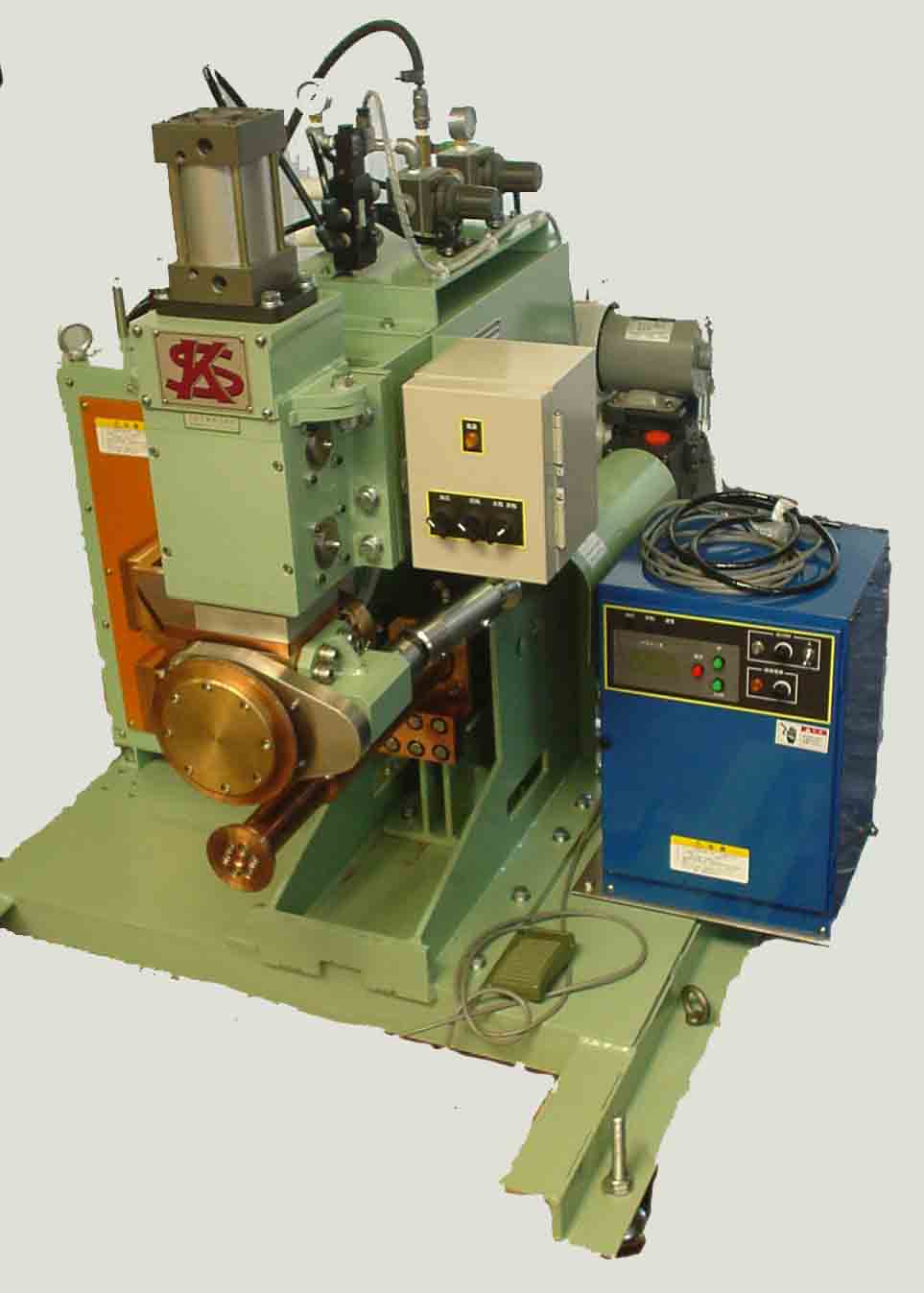

Basic type Product Photos

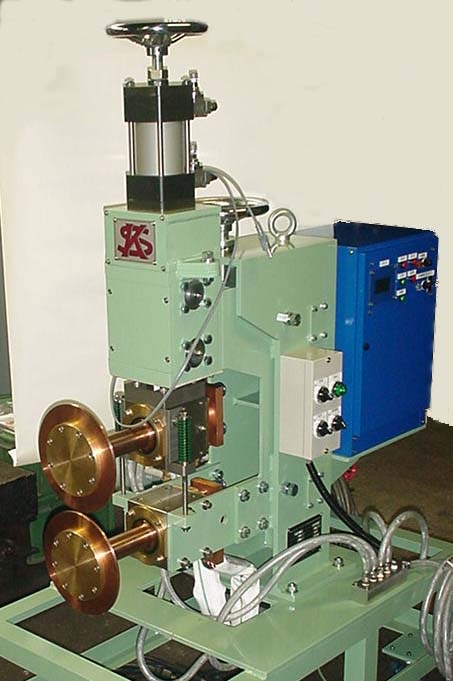

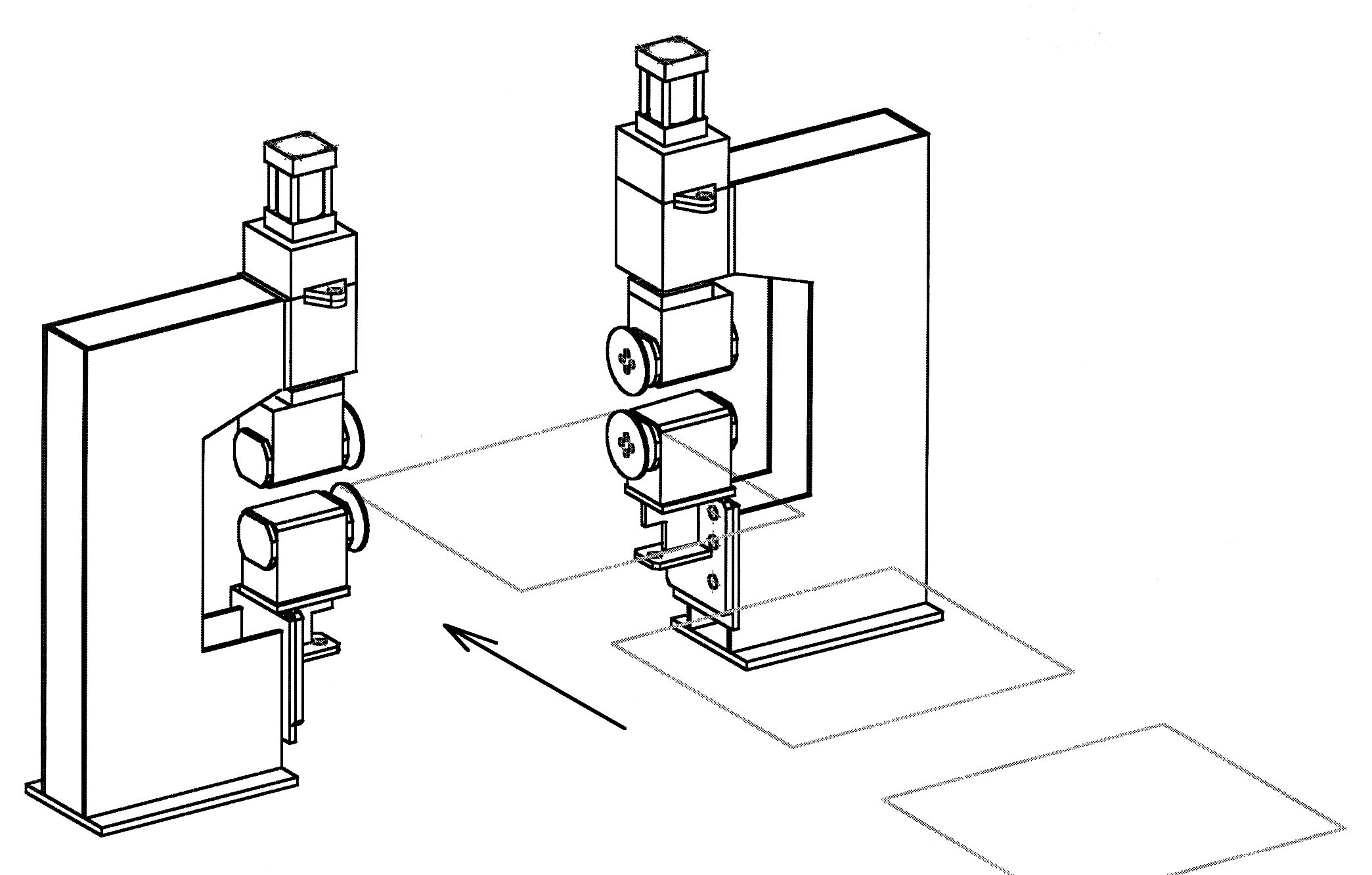

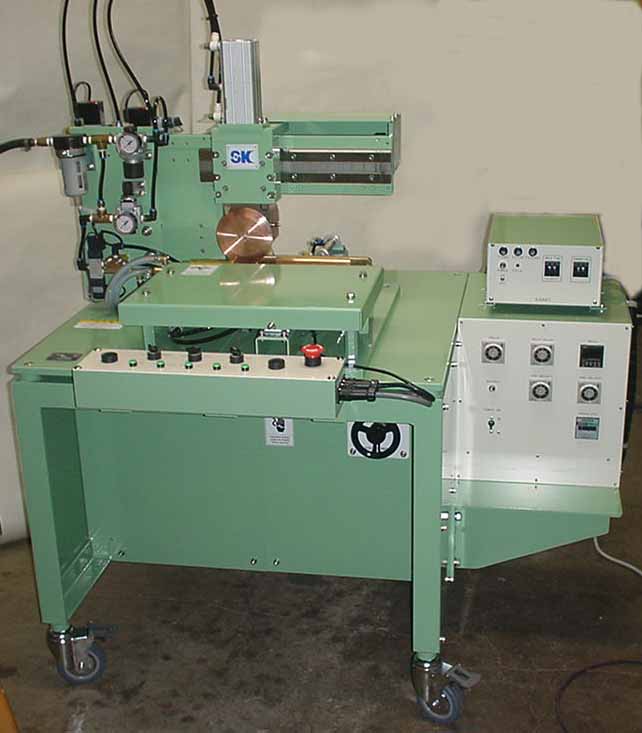

upper=disk electrode / lower= plate electrode

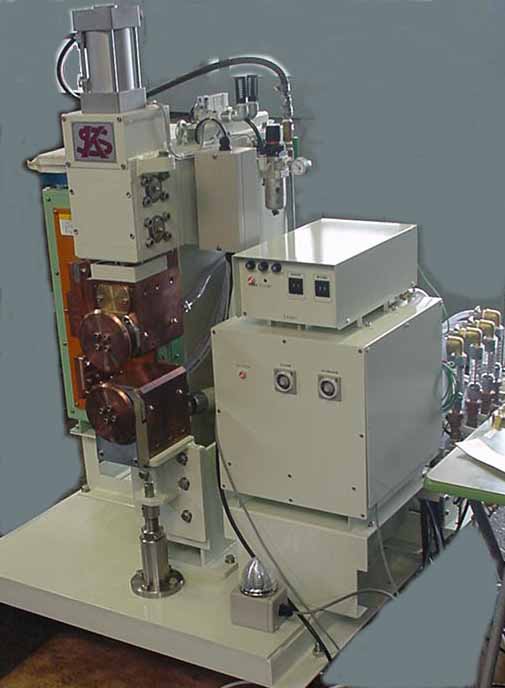

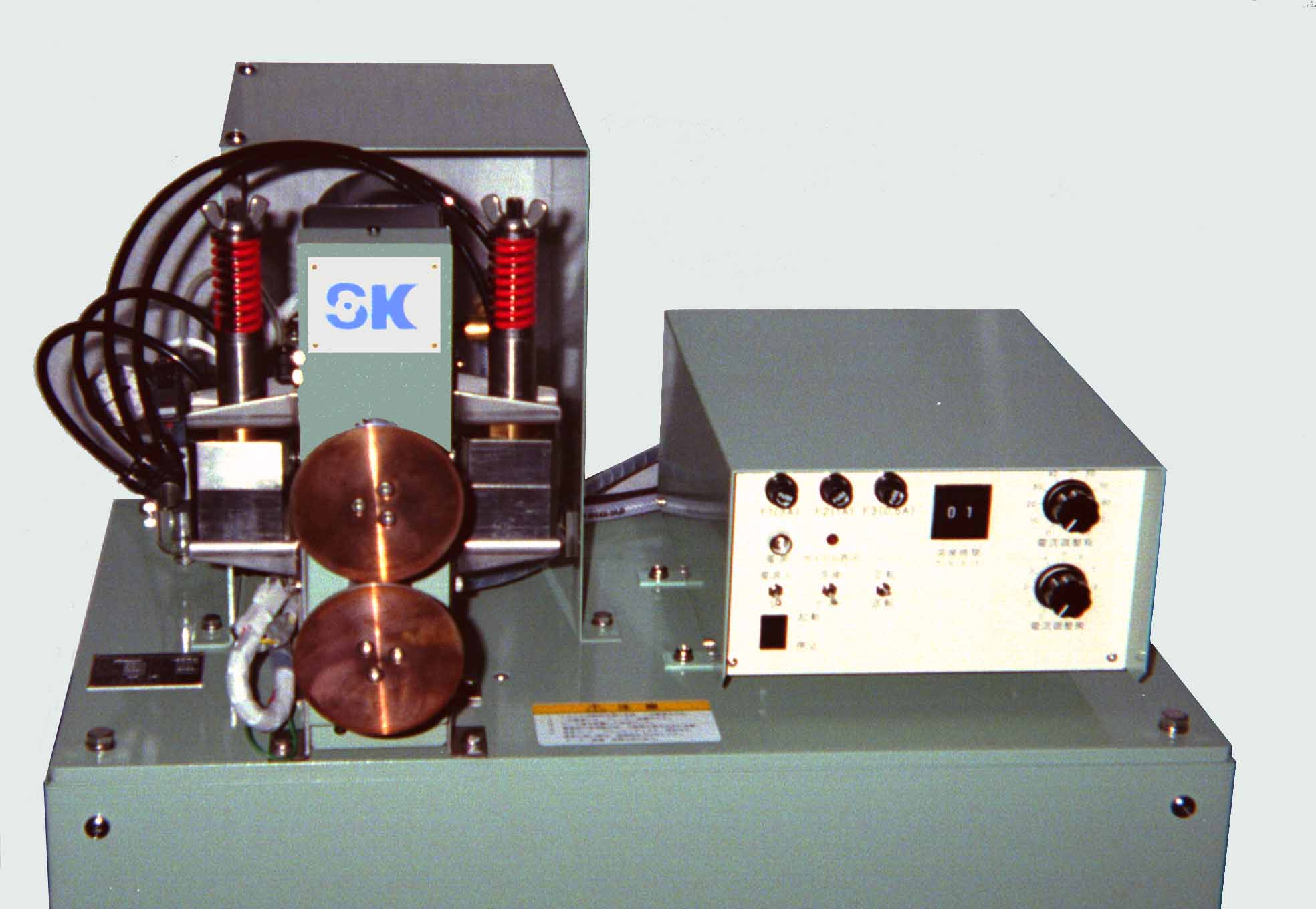

uupper and lower electrode=disk electrode

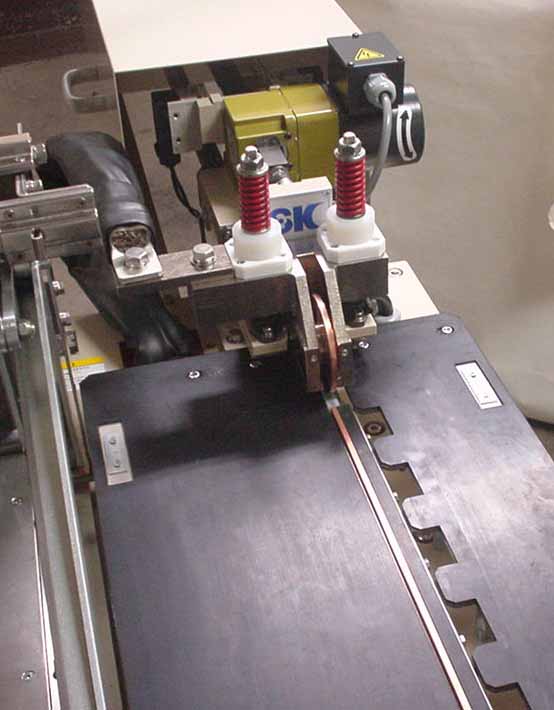

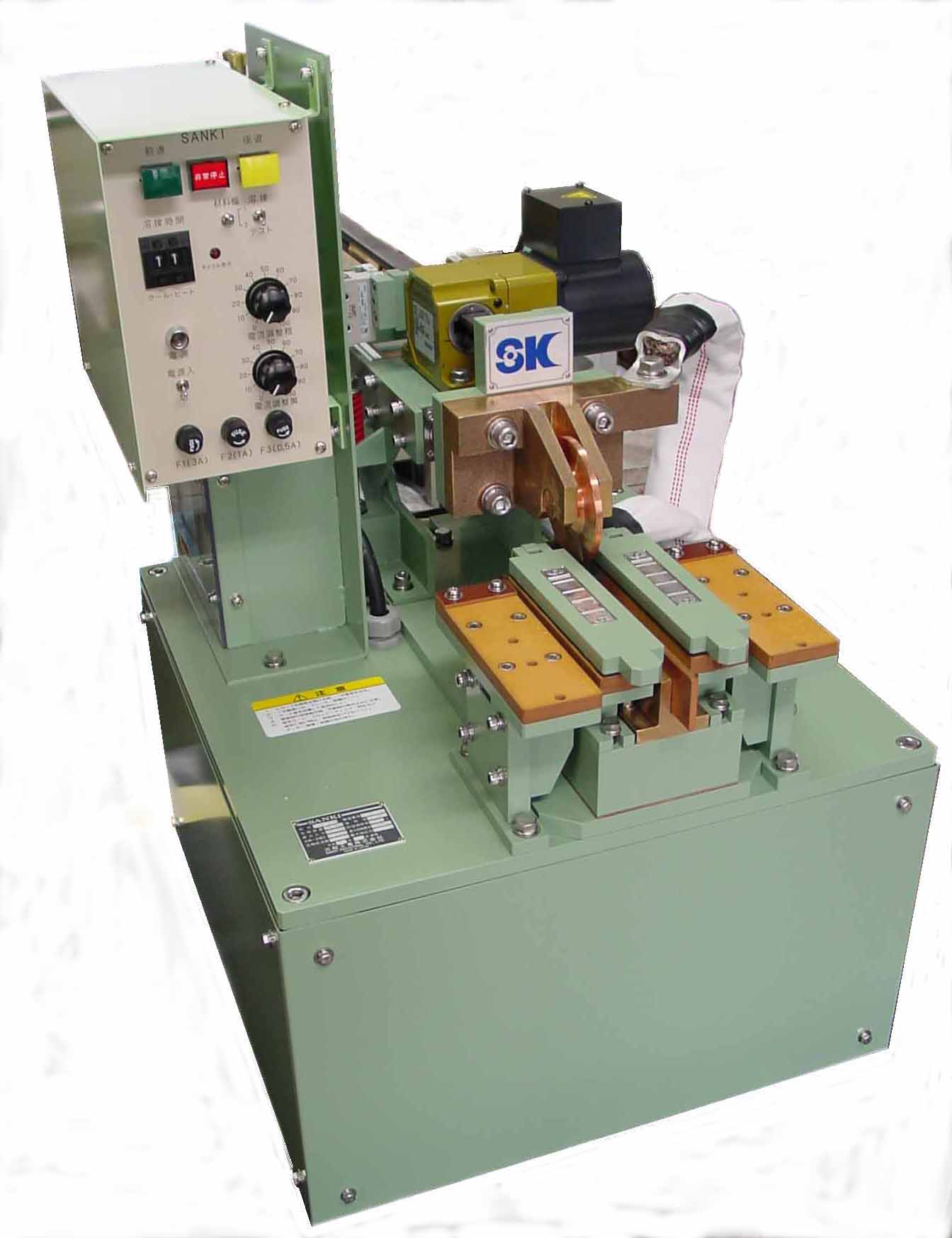

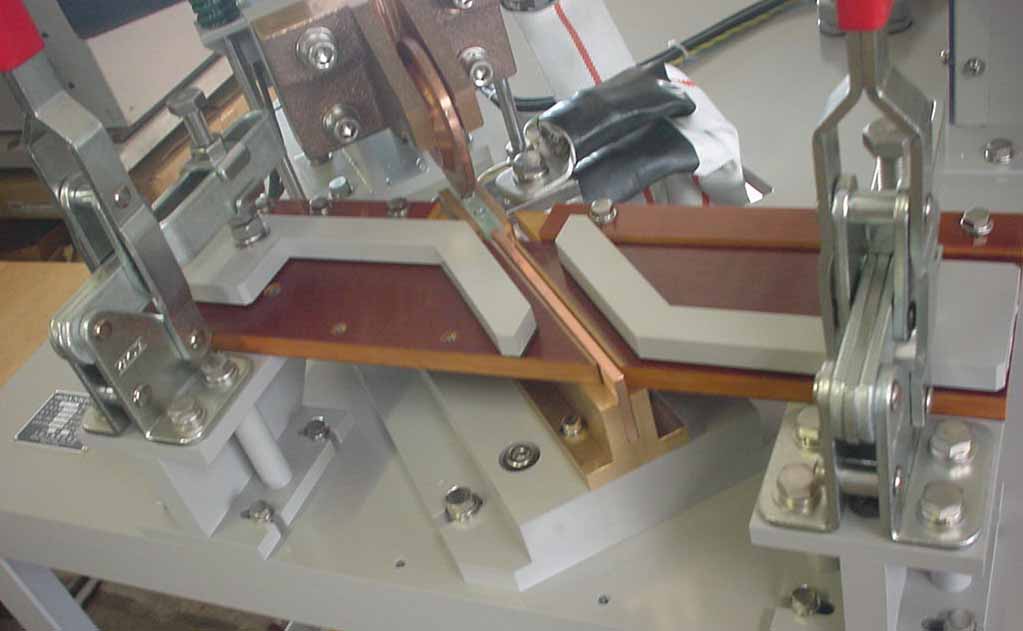

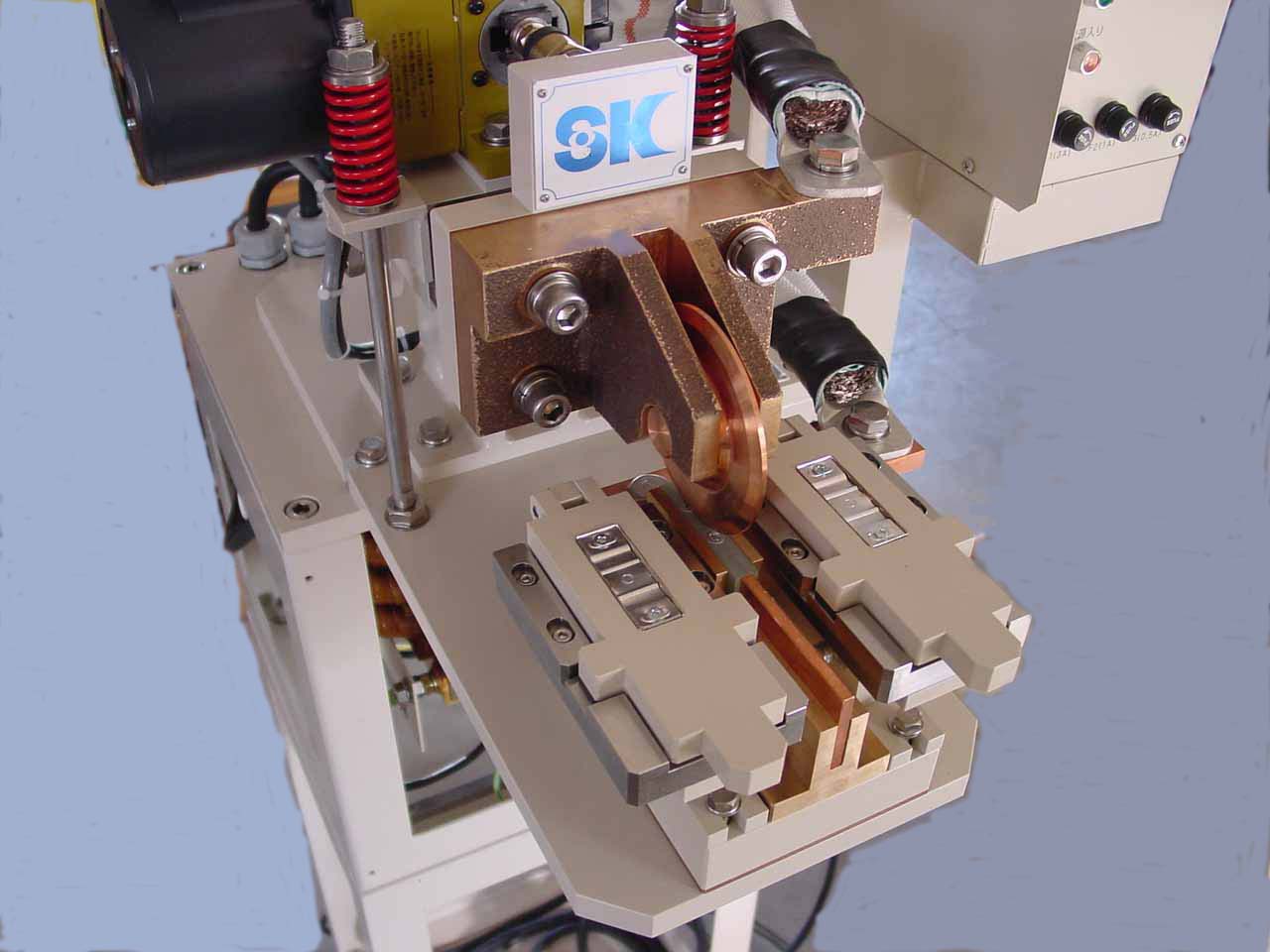

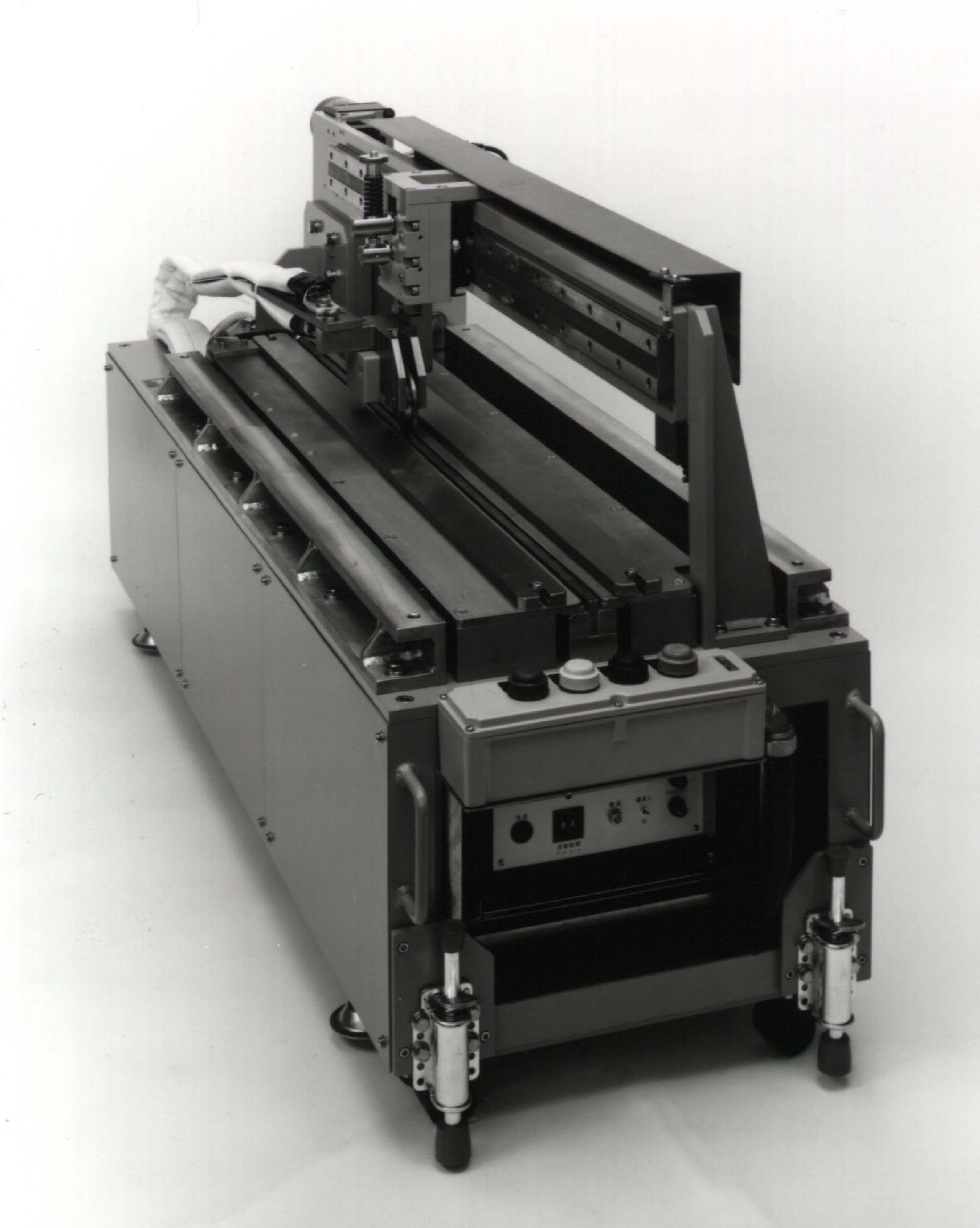

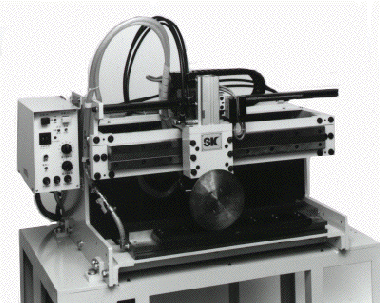

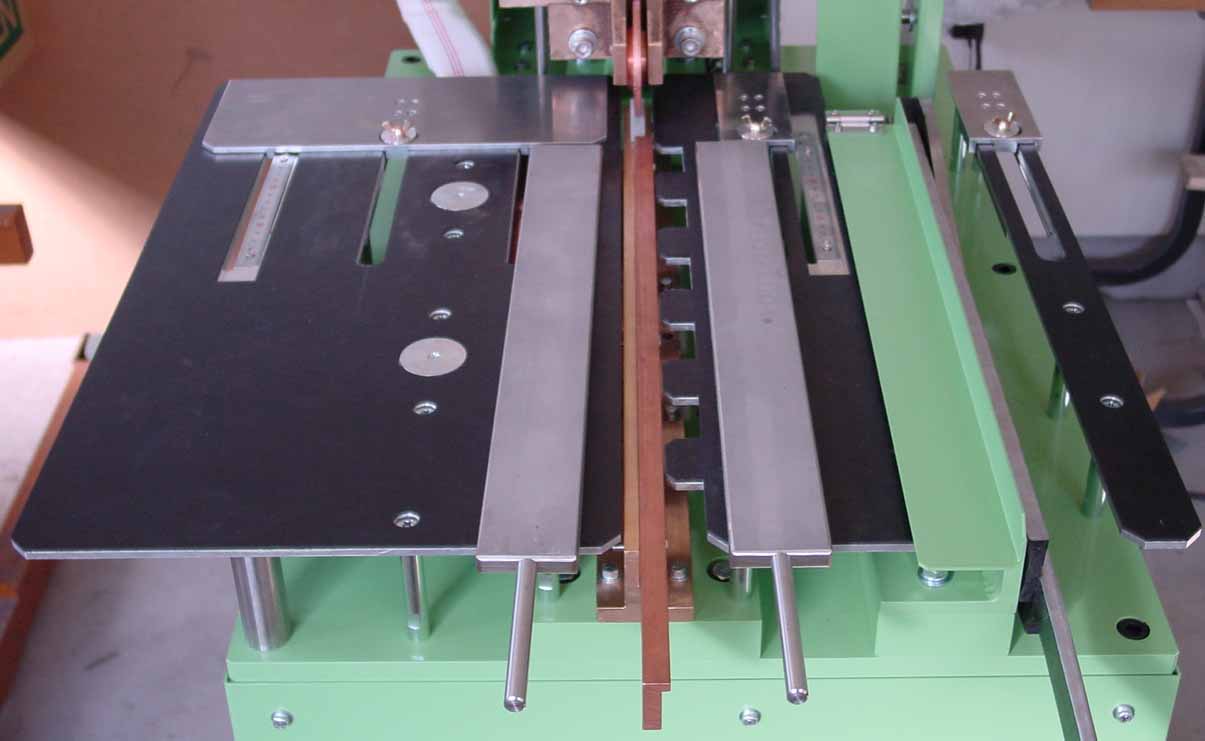

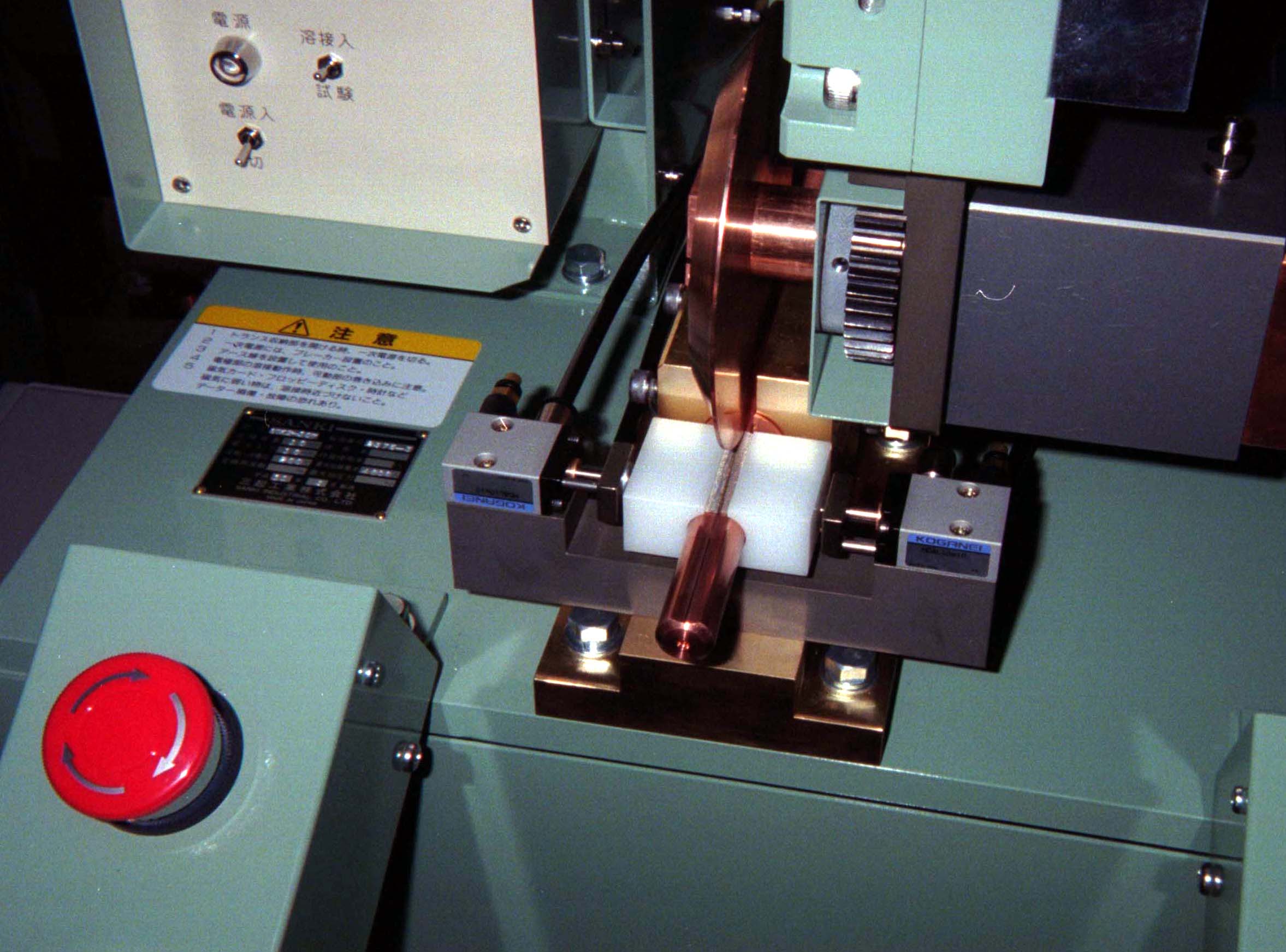

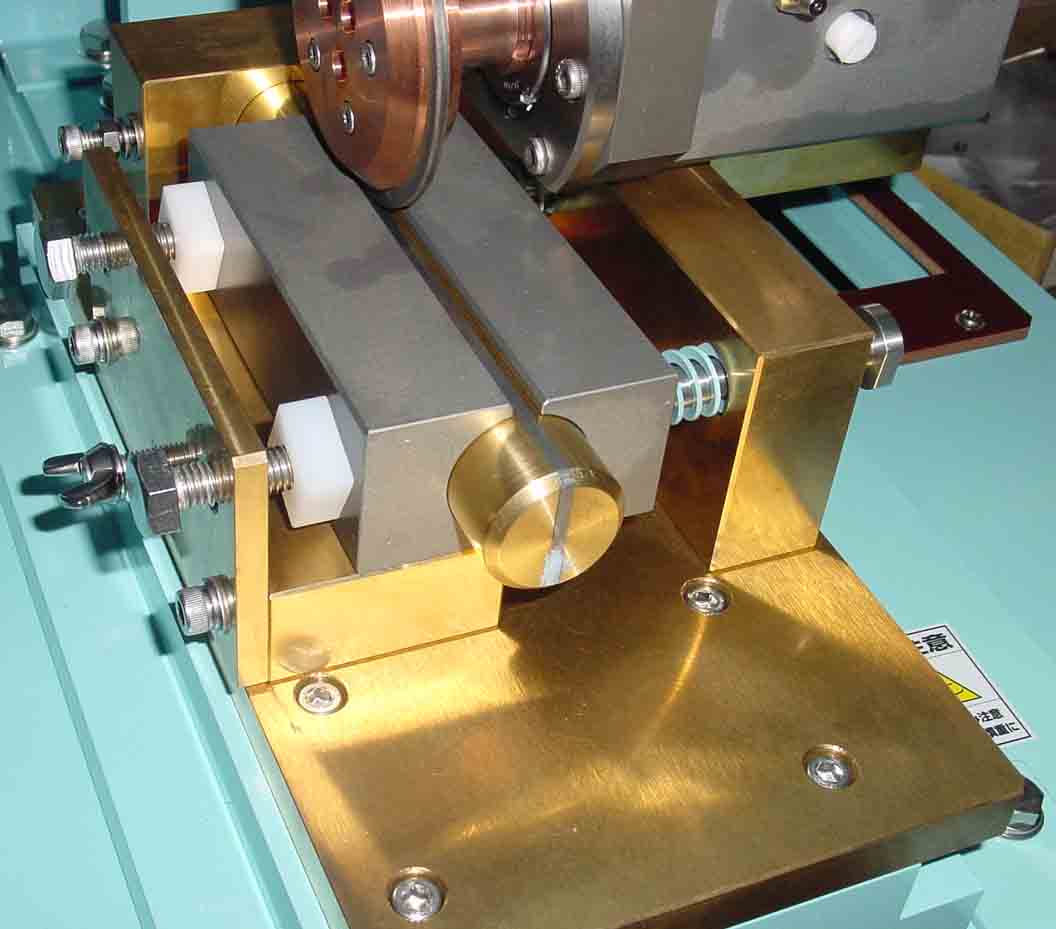

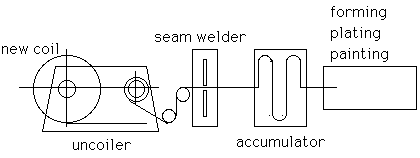

SEAM WELDER FOR HOOP TO HOOP

(WELDING FOR HOOP TO HOOP)

  • 1) Joining Welding For Hoop to Hoop.
  • 2) Especially for Thinner Sheet.
  • 3) Radiator-fin for Air-conditioner. Plating,Heat-Treatment.
  • 4) Suitable for Mild Steel Sheet,Stainless Steel Sheet,Titanium Sheet,Nickl Alloy,Phosphor,Bronze,Copper.

Model List

STKZ-40NSTKZ-25NSTKZ-10NSTKZ-5N
Primary Power220V 50Hz(single phase)
Rated Capacity5KVA10KVA10KVA16KVA
Max.Welding Force3,000A5,000A5,000A7,000A
Welding Speed2.5m/min
Dia of Electrodes80mm
Capacity(Width)Max.50mm,110mm,200mm,300mm,500mm,1m
基本形製品写真

SEAM WELDER FOR WELDING OF
STAINLESS STEEL ROOFING

[SKR-10]

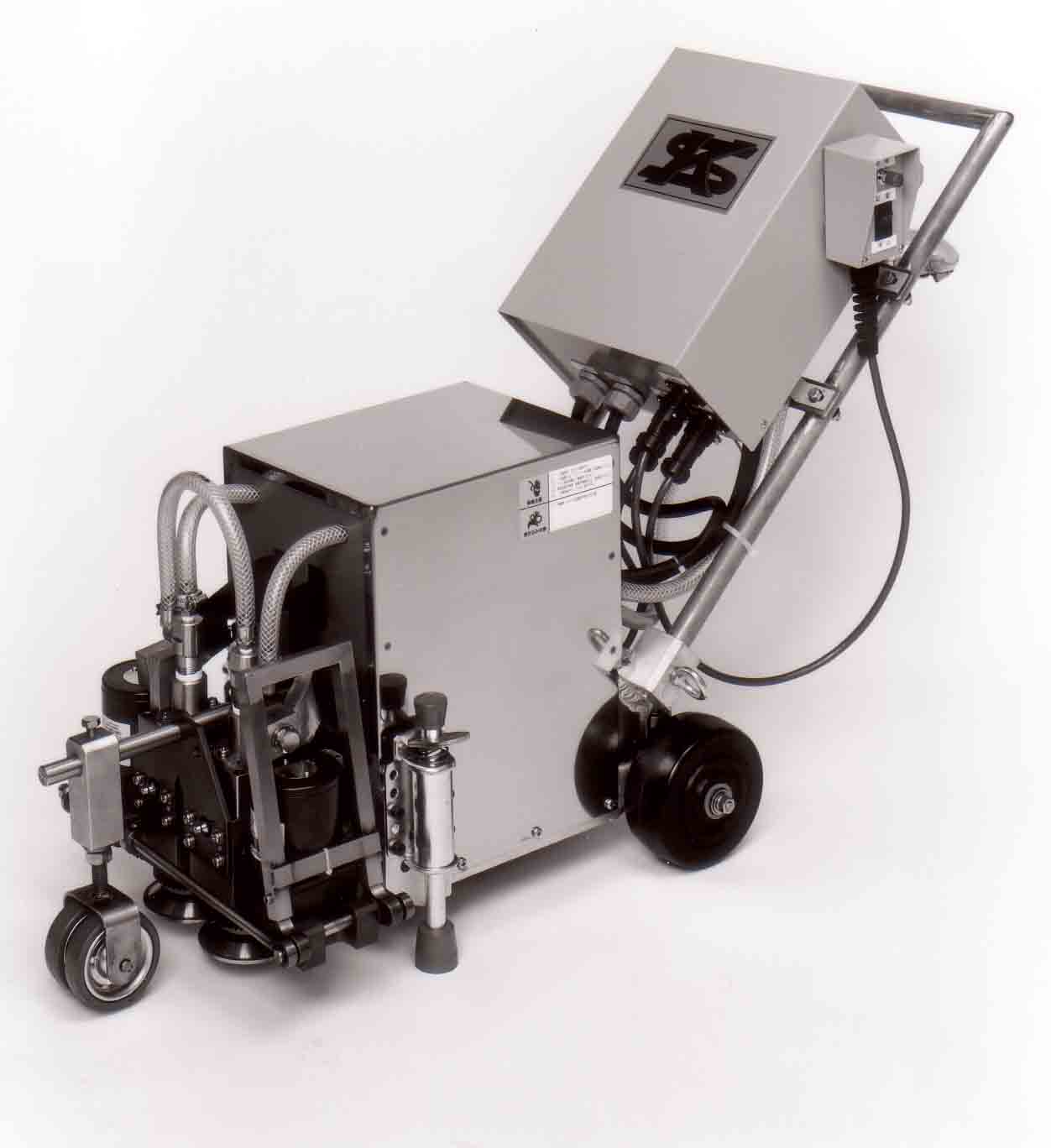

SELF-DRIVEN SEAM WELDER

  • 1) SKR-10 is SELF-DRIVEN type seam welder for straight welding of stainless steel roofing.
  • 2) All the components of transformer,controller & welding-head are concentrated on a carrier with wheels.
  • 3) Easy transfer in work site due to compactness.

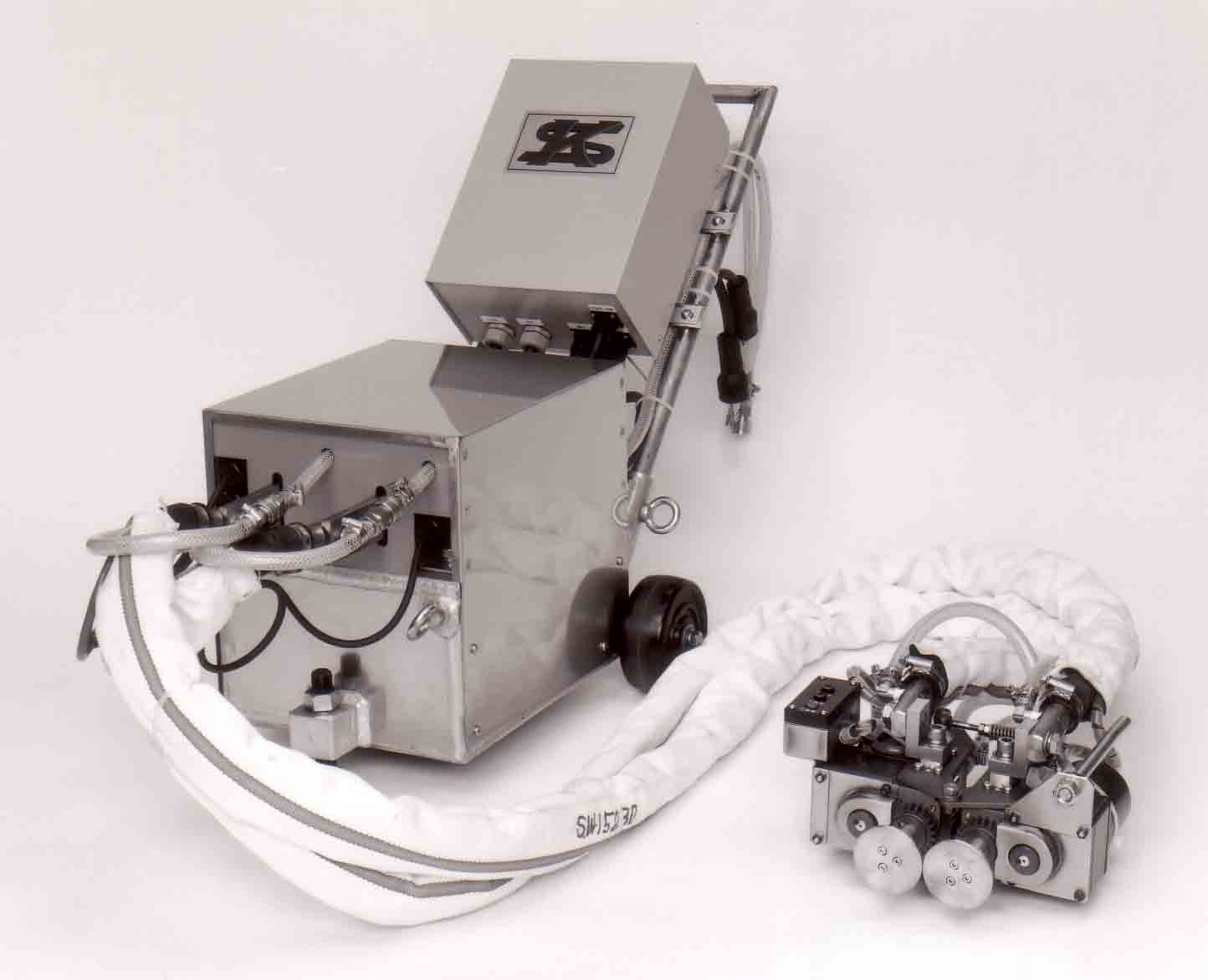

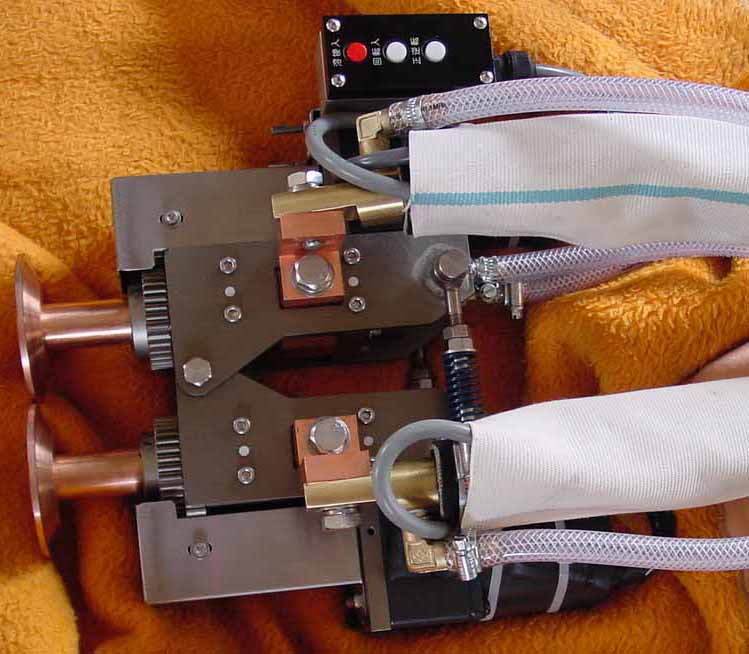

[SKP-30]
PORTABLE SEAM WELDER

  • 1) SKP-30 is specially designed for welding of stainless steel roofing.
  • 2) As welding -head is small in size and light in weght.
  • 3) You can hold it for welding at curved place & corner.
  • 4) For user's covenience,transformer & controller are placed together on carrier with wheels.

Model List

SKR-10SKP-30
Primary Power220V 50Hz (single phase)
Rated Capacity10KVA24KVA
Max.Secondary Shortcircuit Current5,000A4,200A
Max.Welding Force150kg
Welding Speed2.5m/min
Dia of Electrodes80mm80mm/60mm
Net Weight60kg96kg
Capacity (Thickness) : Stainless Steel / Max.0.4mm

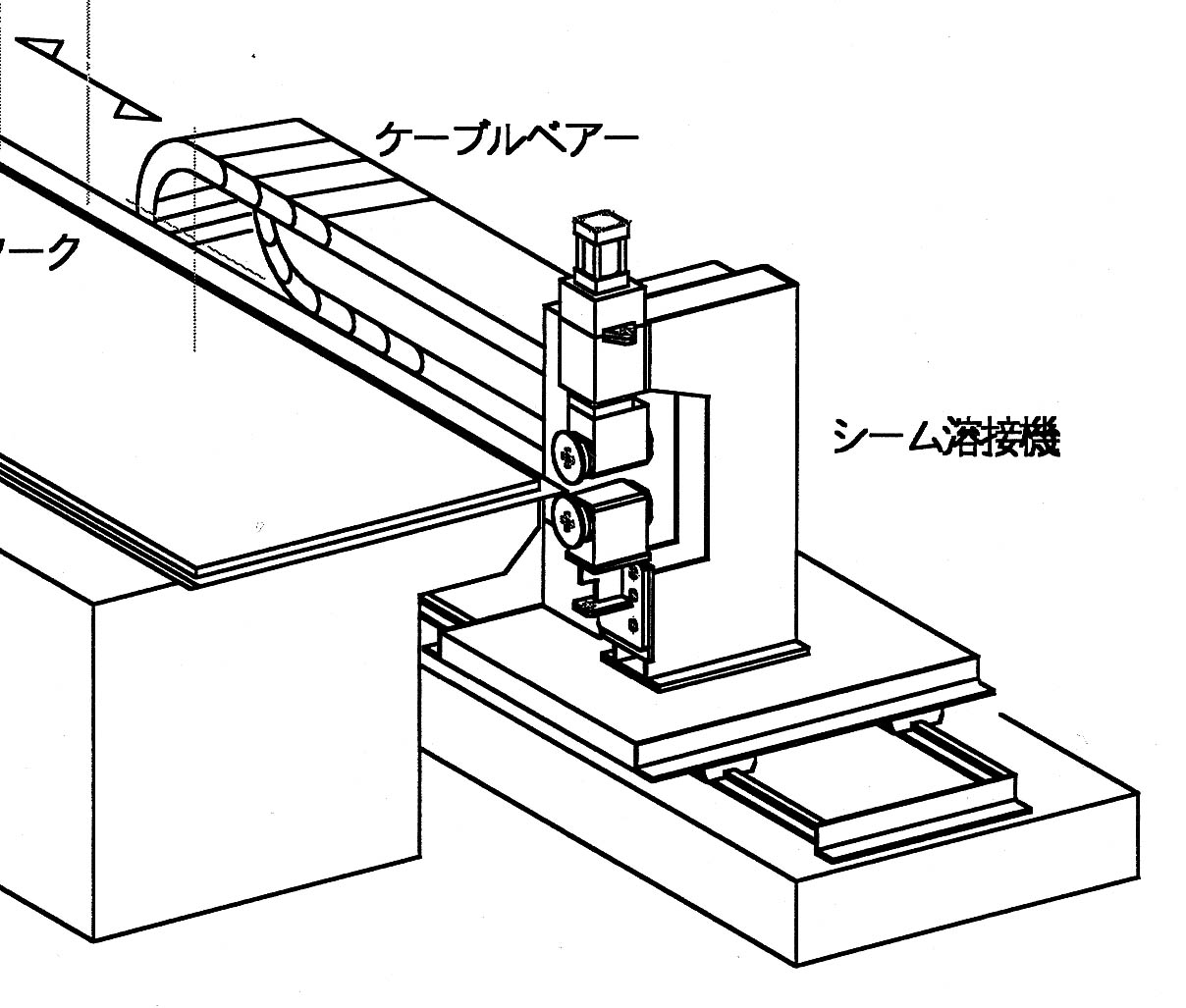

SEAM WELDER / MIDDLE SIZE

Model List

SKM-40
Rated Capacity30KVA
Max.Secondary Shortcircuit Current12,000A
Capacity(Thickness)Mild Steel / 1mm

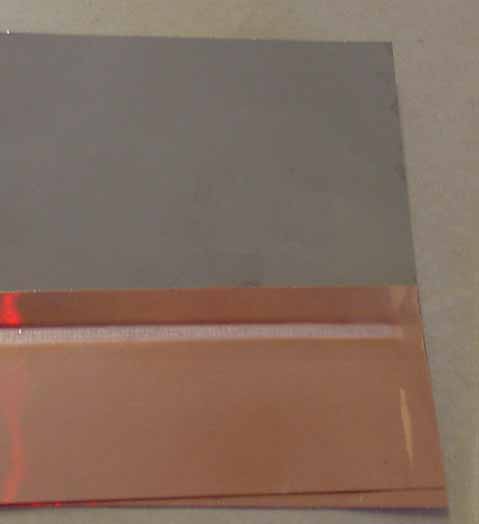

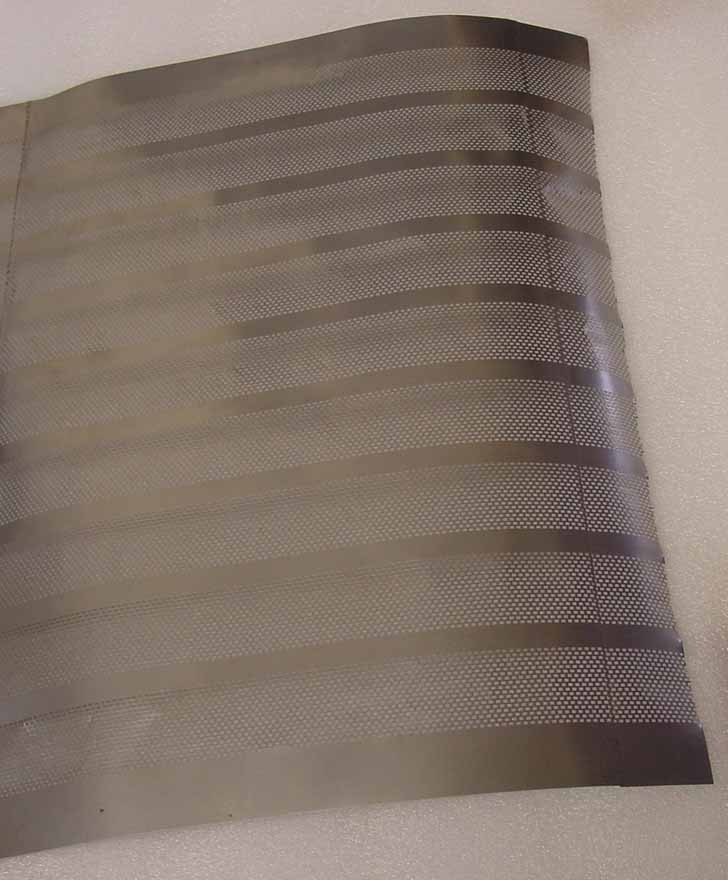

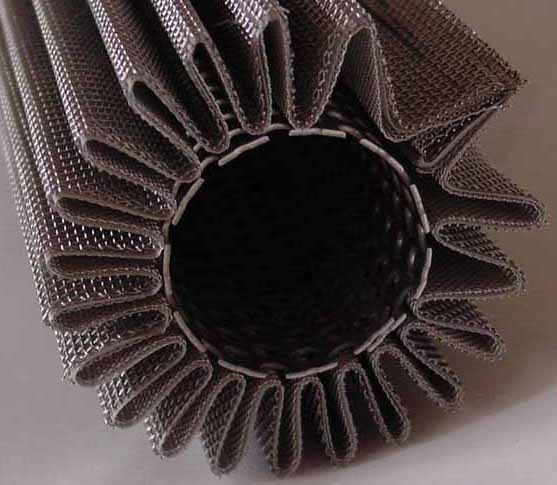

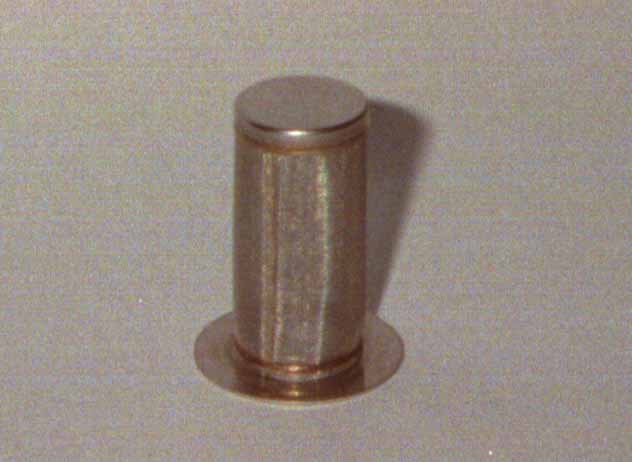

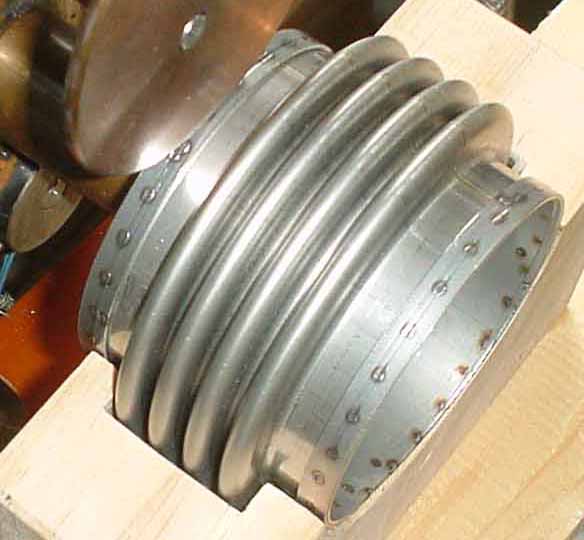

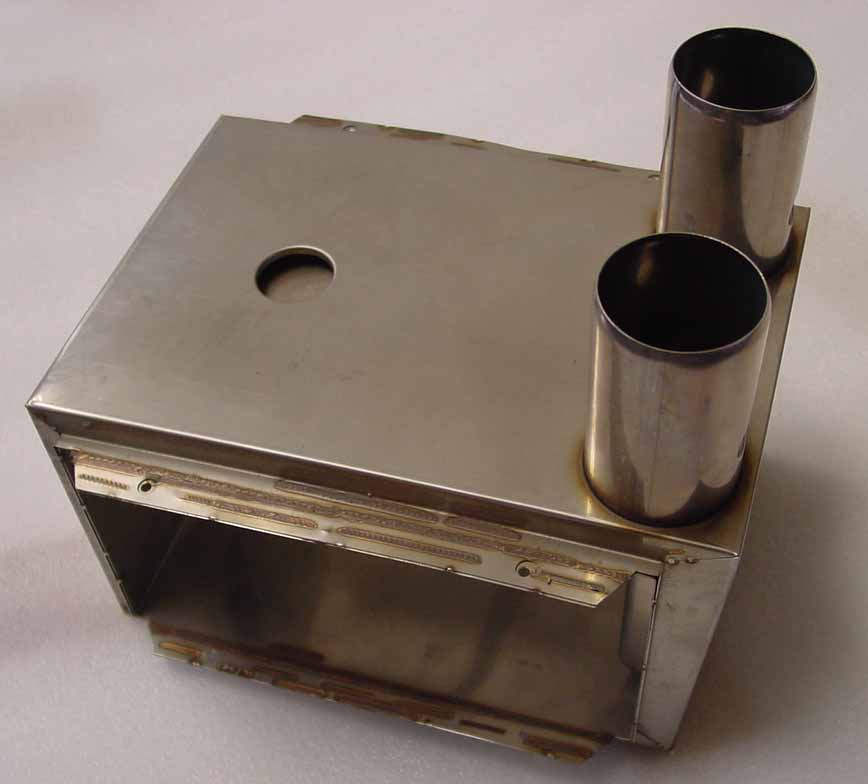

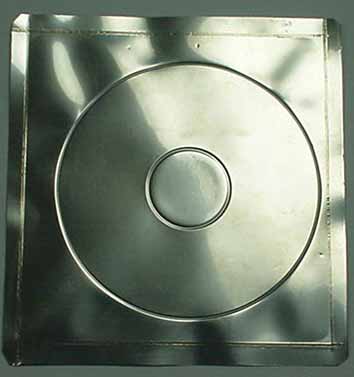

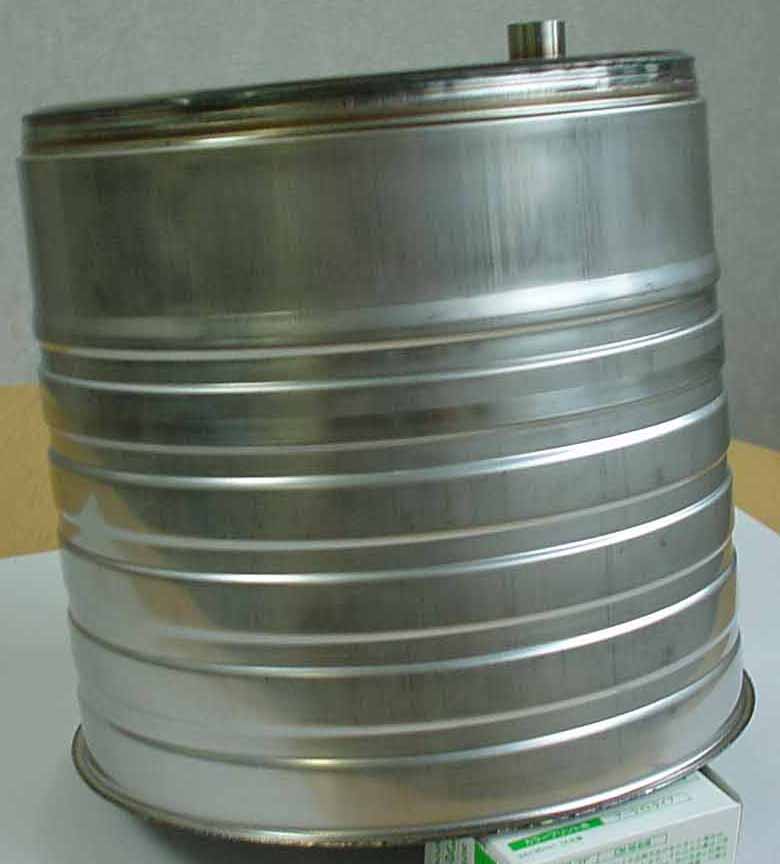

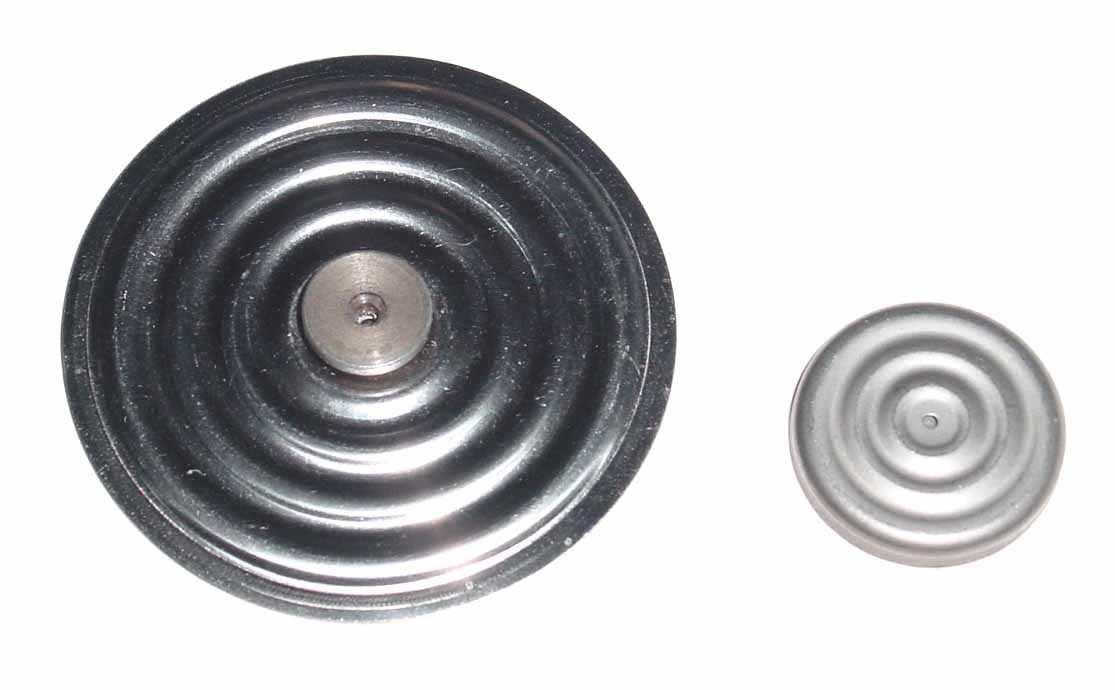

Application Example
